This new lighting system uses 16 LED channels that can be fully controlled independently and can automatically fit a spectrum with a closed-loop (standard spectra are pre-calibrated). The LED channels are DC-driven, ensuring flicker-free light, although LED flicker can be activated. This lighting system can reach very low light (down to 0.1 lux with 10% precision).An illuminance feedback loop automatically stabilizes light levels, and the entire system is computer-controlled so that you can program your own lighting scenarios, including the color temperature. The software ensures perfect repeatability of your illumination conditions.​

General specifications:​

• Size: 785 x 203 x 1590 mm​
• Material: Aluminum​
• Weight: 45 kg

Technical specifications:​

• From 0.1 to 50 000 lux​
• Spectrum: 360–980 nm
• Flicker mode: 50–1000 Hz (50% duty cycle)
• Ethernet connection
• 100-240V 50-60Hz
• max consumption : 2500W

Key features:​

• Flicker-free (DC-driven)
• Closed loop (light level and spectrum)
• Computer control​ & API software​
• Flicker mode (independent for each side)​
• Short raise time (<30 ms)
• Daylight (0.1 to 50K lux), IR (700 to 980 nm)
• Reference: MLS_001 & MLS_SUNIR_001

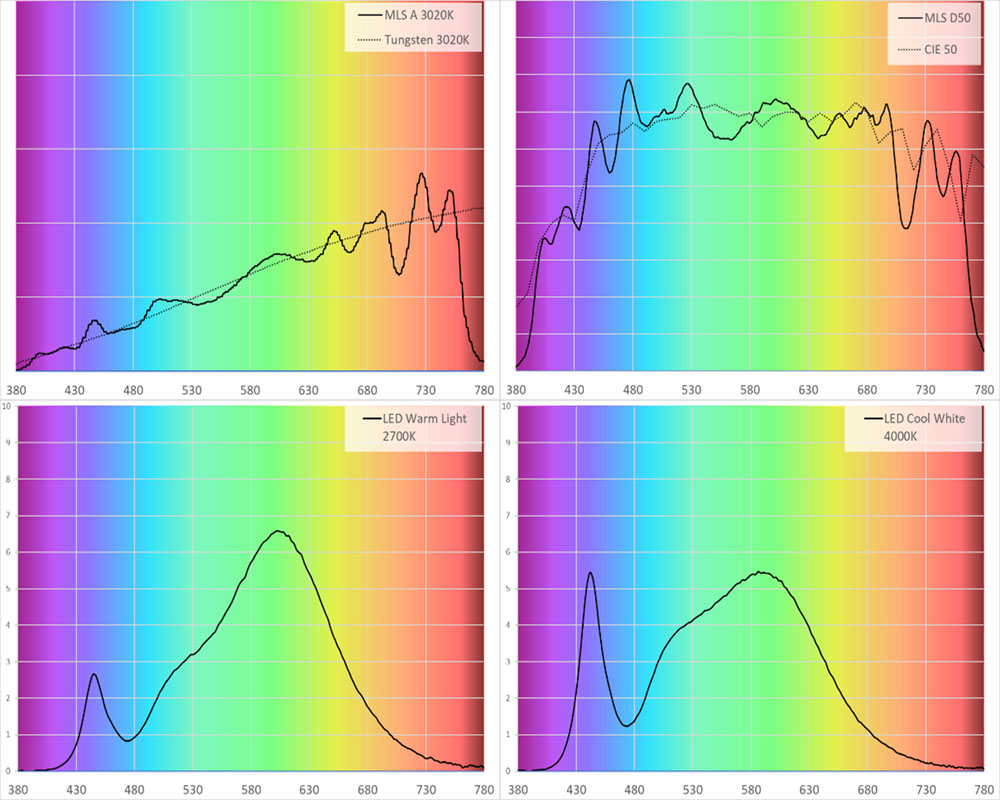

• For MLS SUNIR version:

Daylight D50 with IR Light

Tungsten 2856K with IR Light

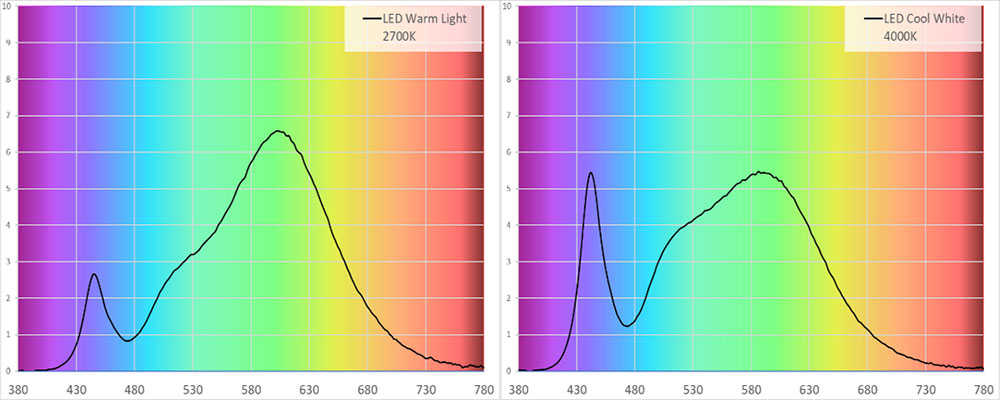

LED standard lights

• For MLS standard version:
